ZTAG-TH Single-use temperature and humidity data logger
●the record label with LCD display, you can view the real-time temperature and humidity data, factory parameters pre-configured, a key to start it can be placed in the target monitoring environment
● is mainly used to monitor and record the temperature and humidity data of fresh products such as vegetables, fruits and meat during storage and transportation.
● is widely used in all aspects of warehousing and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, etc.
Single-Use Temperature&Humidity Data Logger
Wide measuring range Configuration method High capacity High precision
-30℃-70℃ Factory preset parameters Stores 33,000 data points Built-in temperature and humidity sensor
Drive-free encryption report
After the trip is completed, plug the recorder into your computer to read the report
The report cannot be tampered with, and the authoritative
report can trace the temperature data of the entire trip.

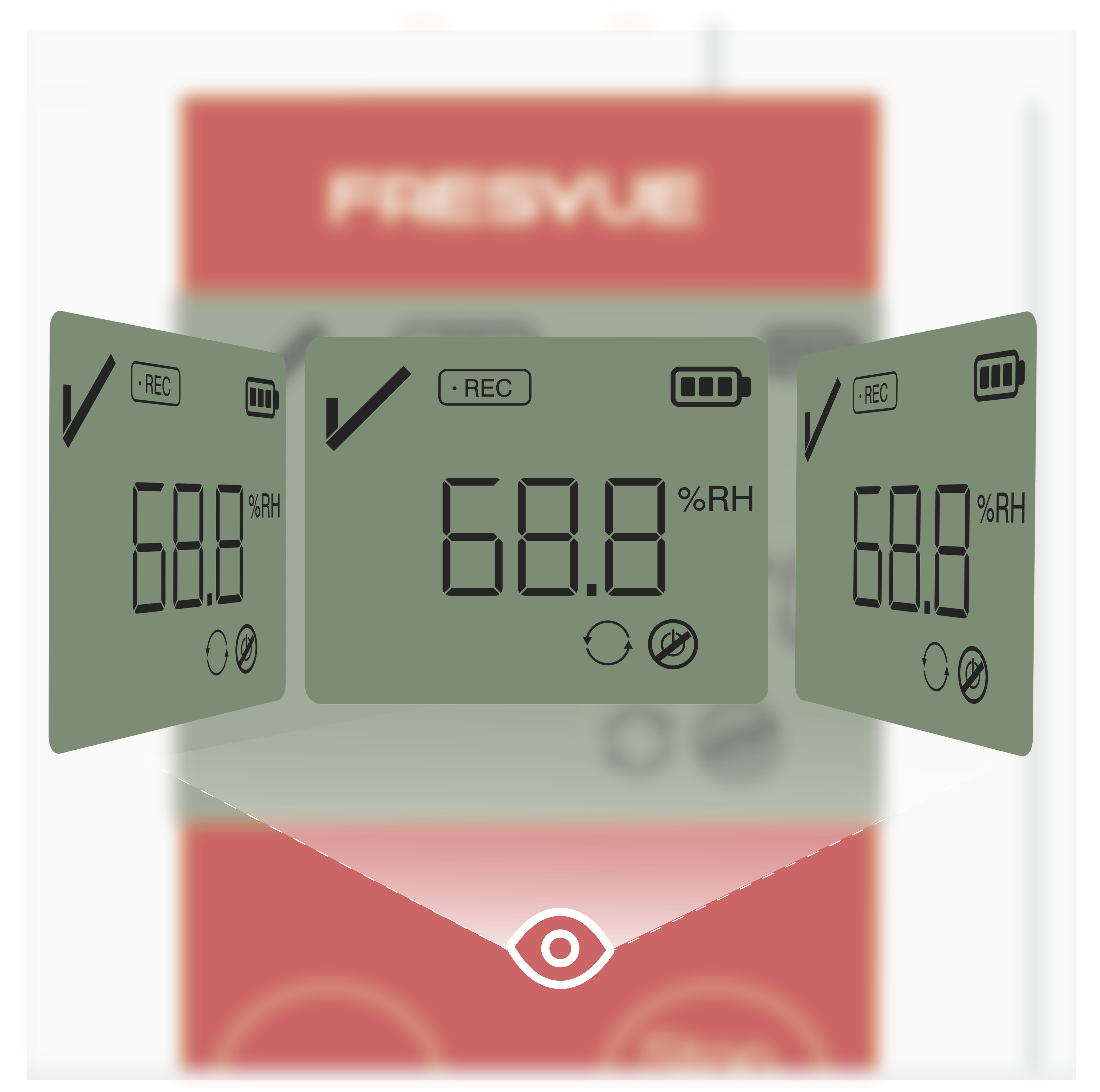

Ultra wide angle display
Using ultra-wide-angle industrial-grade LCD, you can clearly view the
current recorded information from any viewing angle.
One-click start, simple and easy to use
Parameters are pre-configured before leaving the factory, and trip data can
be recorded with one click. It is simple and easy to use.
Air Freight Compliance
Complies with RTCA/DO-160G environmental conditions and test
procedures for airborne equipment, qualified for air shipment in active status.
technical parameters
| battery life | Up to 2 years( 1 year storage / 1 year useful life)@25℃，5 minutes logging interval |
| Measurement range | -30℃~+70℃ (0-100%RH) |
| measurement accuracy | ±0.5°C@-10~70°C，±0.8°C@-30~-10°C (±3%RH@20-80%RH,±4%RH@other） |
| resolution | 0.1°C (1%RH) |
| alarm point | can set 4 high and low alarm points (alarm threshold and over-temperature trigger time can be customized according to customer needs) |
| recording interval | 1 minute -24 hours (can be factory configuration) default 10 minutes |
| storage capacity | Up to 25,000 points@Single PDF/CSV report，18,000 Points @PDF&CSV report |
| startup delay | 0 minutes -24 hours (can be factory configuration) default 15 minutes |
| Start Mode | Manual Start |
| Report Format | PDF/CSV/PDF & CSV (optional, factory configured) |
| protection level | IP65 |
| Battery Type | 3.0V CR2032 |
| Connection Mode | USB2.0 |
| Product Size | 105*40*10mm |
| Product Weight | 30g |
| Product Certification | CE,EN12830:2018,RTCA/DO-160G (Aviation Safety Directive),RoHS |
